Robot 200mNm NEMA 14 Stepper Motor 35x35x40mm Bipolar 1.8 Deg

Name: Robot 200mNm NEMA 14 Stepper Motor 35x35x40mm Bipolar 18 Deg
Brand: Casun
Price: 4.14 USD

Buy cheap Robot 200mNm NEMA 14 Stepper Motor 35x35x40mm Bipolar 1.8 Deg product

Brand Name : Casun

Model Number : 35SHD0803-24B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 200mN.m

Current : 1.2A

Motor Length : 40mm

Shaft : Milling Flat Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 35mm stepper motor has a simple structure, small size, light weight, and is easy to install and maintain.

35mm stepper motors are widely used in fields such as industrial automation, precision instruments, and digital equipment.

Features:

To give the best solution, our engineers will contact you within 48 hours
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Ten-year guarantee and purchase with assurance

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	200 mN.m
Resistance	2.5 ohm
Inductance	3.8 mH
Rotor Inertia	18 g-cm²
Motor weight	0.21 kg
Number of leads	4
Connection	Bipolar

Appearance

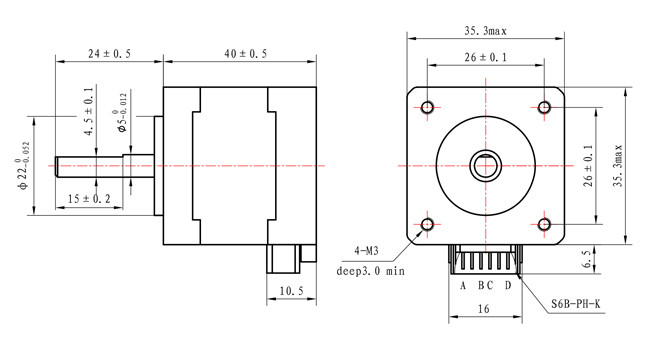

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
