42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor for Drawing equipment

Name: 42x42x34mm 2 Phase 18 Degree Nema 17 Stepper Motor for Drawing equipment
Brand: Casun
Price: 3.14 USD

Buy cheap 42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor for Drawing equipment product

Brand Name : Casun

Model Number : 42SHD0078-24

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 250mN.m

Current : 0.35A

Motor Length : 34mm

Shaft : Round Shaft 20mm Length

Phase : 2

Customized : The motor can be designed &manufactured with customized request.

Contact Now

42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor for Drawing Equipment

The NEMA 17 stepper motor is used for linear sliding tables to achieve precise movement and positioning of workpieces. They have lower costs, which makes them very attractive in cost-sensitive applications.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Every stepper motor model is adaptable to various applications
Contract-based manufacturing services are welcome

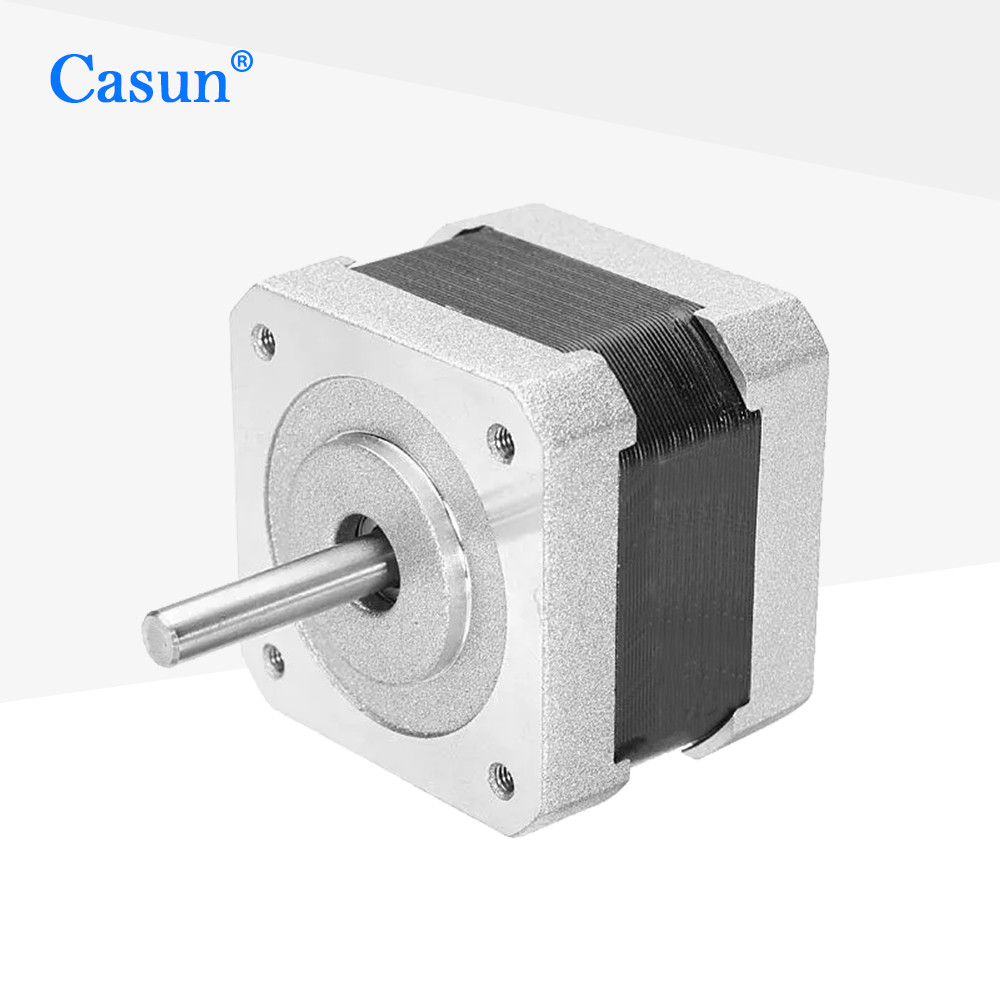

Appearance

42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor for Drawing equipment

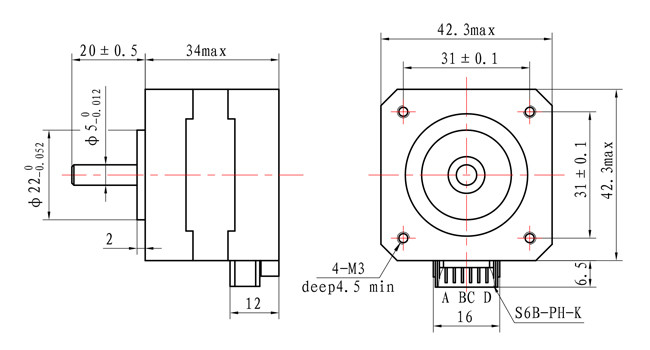

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	0.35 A
Holding Torque	250 mN.m
Resistance	34.3 ohm
Inductance	38 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.2 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft
