【42SHD0409】High Quality 424248mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis

Name: 42SHD0409High Quality 424248mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42Ncm for xyz axis
Brand: Casun
Price: 3.14 USD

Buy cheap 【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis product

Brand Name : Casun

Model Number : 42SHD0409-17B

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 420mN.m

Current : 0.5A

Motor Length : 48mm

Shaft : Milling Flat Shaft 17mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 42mm Hybrid Stepper Motor Series is a digital motor with very precise step angles.

They can operate stably for a long time and are not easily affected by external interference.

Features:

Ten-year warranty and secure shopping
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Every stepper motor model has use in a variety of situations
Established in China for 12 years and has served more than 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Holding Torque	420 mN.m
Resistance	24 ohm
Inductance	32 mH
Rotor Inertia	72 g-cm²
Motor weight	0.38 kg
Number of leads	4
Connection	Bipolar

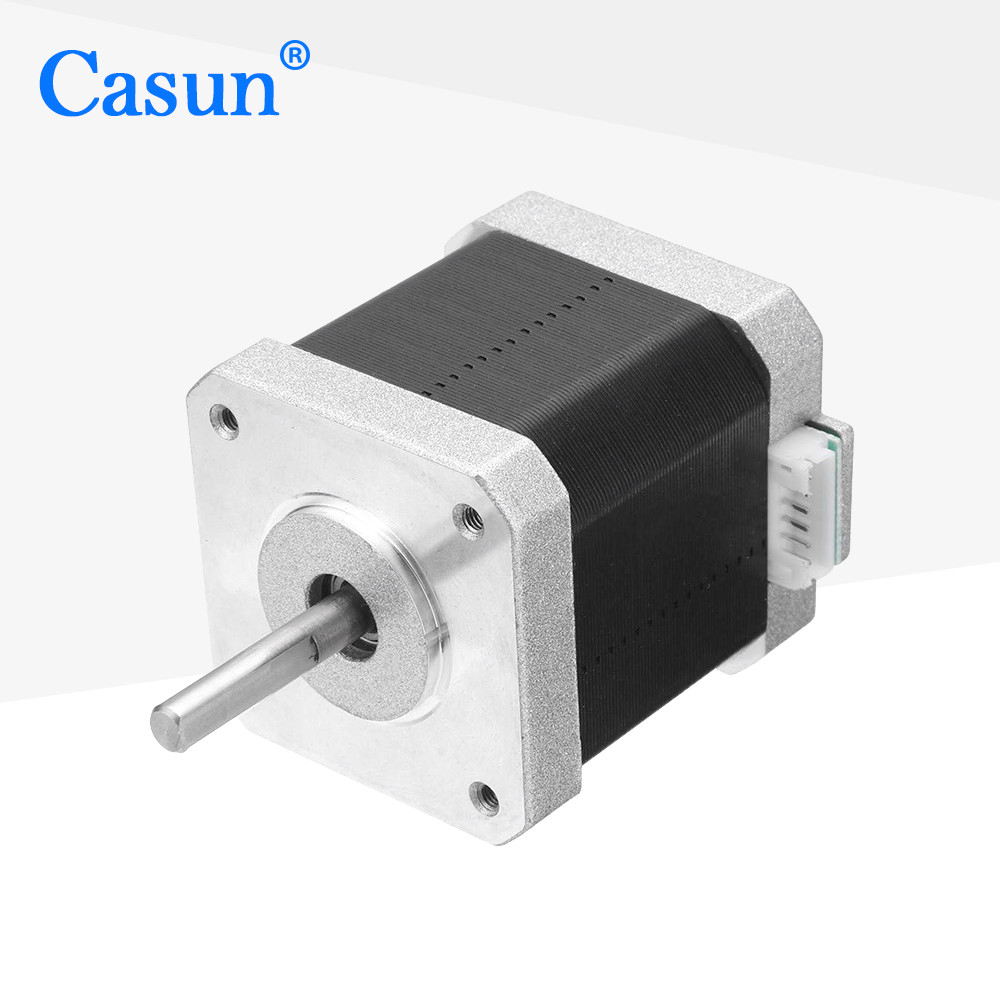

Appearance

【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis

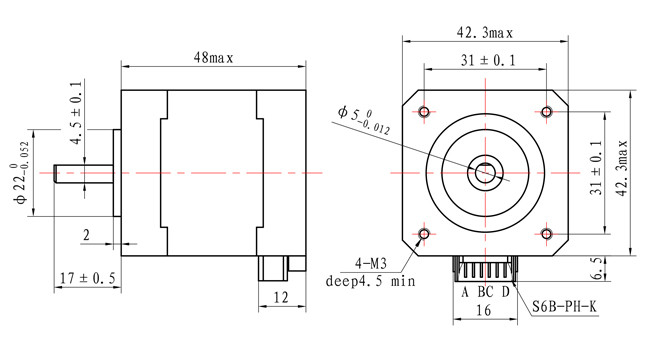

Dimensions

【42SHD0409】High Quality 42*42*48mm Hybrid Stepping Motor 2 Phase Nema 17 12V 42N.cm for xyz axis

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
