【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar

Name: 42SHD043818 deg 54Ncm 763ozin 168A 277V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar
Brand: Casun
Price: 3.14 USD

Buy cheap 【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar product

Brand Name : Casun

Model Number : 42SHD0438-30B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 540mN.m

Current : 1.68A

Motor Length : 48mm

Shaft : Milling Flat Shaft 30mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 42mm Hybrid Stepper Motor Series has a relatively high torque output and can maintain a high speed.

Its shaft can withstand high loads and is suitable for various applications such as printing machinery, automation equipment, and robots.

Features:

Every stepper motor model has use in a variety of situations.
Needed dealers! !
Available in single or double shaft versions
High torque and high precision
Established in China for 12 years and has served more than 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	540 mN.m
Resistance	1.65 ohm
Inductance	2.8 mH
Rotor Inertia	72 g-cm²
Motor weight	0.38 kg
Number of leads	4
Connection	Bipolar

Appearance

【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar

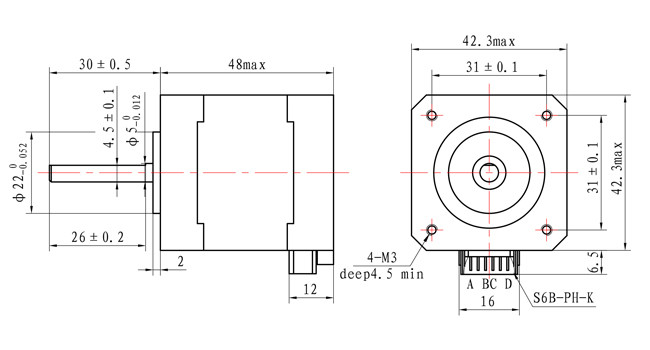

Dimensions

【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
