18mN.M Nema 8 Gearbox Stepper Motor 0.5A Casun Stepper Motor

Name: 18mNM Nema 8 Gearbox Stepper Motor 05A Casun Stepper Motor
Brand: Casun
Price: 22.94 USD

Buy cheap 18mN.M Nema 8 Gearbox Stepper Motor 0.5A Casun Stepper Motor product

Brand Name : Casun

Model Number : B20SHD6054-14G2

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1PC

Price : $22.94-$27.54

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 18mN.m

Current : 0.5A

Motor Length : 30mm

Shaft : Round Shaft 18.5mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

18mN.M Nema 8 Gearbox Stepper Motor 0.5A

Mini 18mN.m Nema 8 Gearbox Stepper Motor 0.5A stepping motor designed for beauty equipment and medical applications. Compact dimensions of 20x20x30mm with reliable performance.

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Holding Torque	18 mN.m
Resistance	11.5 ohm
Inductance	1.7 mH
Rotor Inertia	2 g-cm²
Motor Weight	0.3 kg
Number of Leads	6
Connection	Bipolar

Appearance & Dimensions

18mN.M Nema 8 Gearbox Stepper Motor 0.5A Casun Stepper Motor

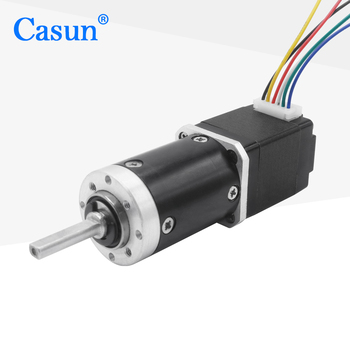

Motor Appearance

Motor Dimensions

Customization Options

Encoder

Brake

Gearbox

Connector

We can customize motors according to your specific requirements including special shafts, winding parameters, installation dimensions, lead wires, and connectors.
