Planetary Gear Reducer Nema 17 Stepper 42x42x40mm Hybrid Stepper Motor

Name: Planetary Gear Reducer Nema 17 Stepper 42x42x40mm Hybrid Stepper Motor
Brand: Casun
Price: 24 USD

Buy cheap Planetary Gear Reducer Nema 17 Stepper 42x42x40mm Hybrid Stepper Motor product

Brand Name : Casun

Model Number : 42SHD4229-100PLH

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $24-$27

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Planetary Gear Reducer Nema 17 Stepper 42x42x40mm Hybrid Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a compact 42x42x40mm form factor. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose from standard versions or request customized configurations to meet your specific requirements.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction for optimal performance
Available in single or double shaft versions
CE and RoHS approved for quality assurance
Customizations available upon request

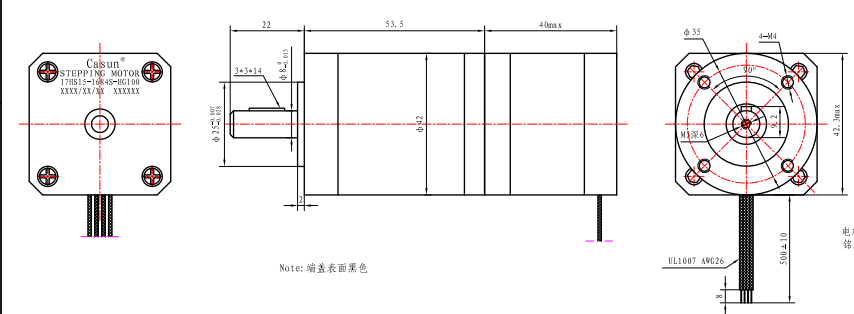

Dimensions

Planetary Gear Reducer Nema 17 Stepper 42x42x40mm Hybrid Stepper Motor

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	390 mN.m
Resistance	1.65 Ω
Inductance	3.2 mH
Rotor Inertia	57 g·cm²
Motor Weight	0.9 kg
Gear Reduction Ratio	100:1
Connection	Bipolar

Operating Specifications

Motor Operating Conditions

Parameter	Specification
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box Specifications

Parameter	Specification
Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Available Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	90%
48 mm		35 mm	13.76	80%
60 mm		19.2	80%
	26.8	80%
	42.7 mm	51	70%
		71	70%
		99.5	70%
		139	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your specific requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements and receive a customized solution.
