60mN.M 0.67Amp 3.75v NEMA 11 Stepper Motor With Lead Screw Linear Stepper Motor

Name: 60mNM 067Amp 375v NEMA 11 Stepper Motor With Lead Screw Linear Stepper Motor
Brand: Casun
Price: 10.94 USD

Buy cheap 60mN.M 0.67Amp 3.75v NEMA 11 Stepper Motor With Lead Screw Linear Stepper Motor product

Brand Name : Casun

Model Number : 28SHD4202-36NM

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29xc14m

Price : $10.94 - $14.94

Color : black

current : 0.67Amp

Holding torque : 60mN.m

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Nema 11 lead srew stepper motor tr4.76X0.635 60mN.m 0.67Amp 3.75v linear stepper motor

NEMA17 Ball stepper motor with lead screw holding torque 280mN.m 0.2kg tr8*8 for CNC

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

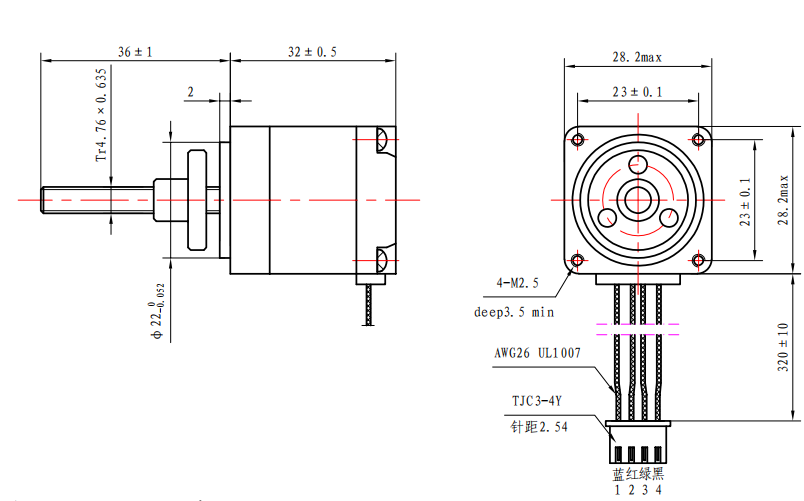

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28mm
Number of Phase	2 Phase
Rated Current	0.67Amp
Holding Torque	60 mN.m
Resistance	5.6ohm
Inductance	3.4mH
Rotor Inertia	9g-cm²
Motor weight	0.12kg
Lead Screw	Tr4.76X0.635
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 34 mm 40 mm 48 mm 60 mm	5	2	20-1000 mm
		8
	6.35	1.27
		3.175
		6.35
	6.5	3
		6.35
	8	1
		2
		4
		8
		12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
