NEMA34 Closed Loop Stepper Motor 86X86mm 8.5Nm 3.24V DC 6A For CNC

Name: NEMA34 Closed Loop Stepper Motor 86X86mm 85Nm 324V DC 6A For CNC
Brand: Casun
Price: 47 USD

Buy cheap NEMA34 Closed Loop Stepper Motor 86X86mm 8.5Nm 3.24V DC 6A For CNC product

Brand Name : Casun

Model Number : 86EBP181ALC

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $47-$55

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

color : black

Current / phase : 6Amp

Holding torque : 8.5N.m

Customized : The motor can be designed &manufactured with customized request.

Contact Now

NEMA34 Closed Loop Stepper Motor 86X86mm 8.5Nm 3.24V DC 6A For CNC

Casun NEMA34 Closed Loop Motor 86X86mm 8.5Nm 3.24V DC 6A Stepper Motor for CNC. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

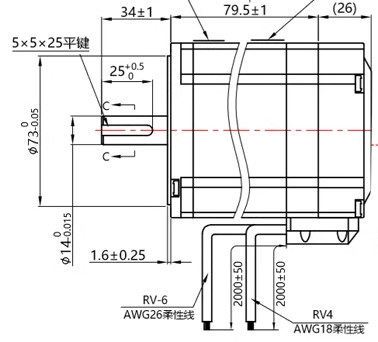

Dimensions

NEMA34 Closed Loop Stepper Motor 86X86mm 8.5Nm 3.24V DC 6A For CNC

Motor Specifications

Step Angle	1.8°
Frame Size	86mm
Number of Phase	2 Phase
Rated Current	6 Amp
Holding Torque	8.5N.m
Resistance	0.54Ohm
Inductance	5.0mH
Rotor Inertia	2700g-cm²
Motor Weight	3.8 kg
Encoder Pulse	1000
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder

Voltage	5V
Output	A + A - B + B -

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
