1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

Name: 18 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mNM 03A For SMT Machine
Brand: Casun
Price: 4.14 USD

Buy cheap 1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine product

Brand Name : Casun

Model Number : 36SHD4301-11B1

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 70mN.m

Current : 0.3A

Motor Length : 15.3mm

Shaft : Milling Flat Shaft 11mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

The motor adopts a step-by-step operation method, so its motion accuracy is very high, which can meet some situations with high precision requirements.

Widely used in some limited space scenarios.

Features:

Welcoming contract manufacturing
Offer specialised services
Available in single or double shaft versions
Tailored service options
Having operated in China for 12 years, we have catered to over 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	36 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	70 mN.m
Resistance	15.5 ohm
Inductance	7.0 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

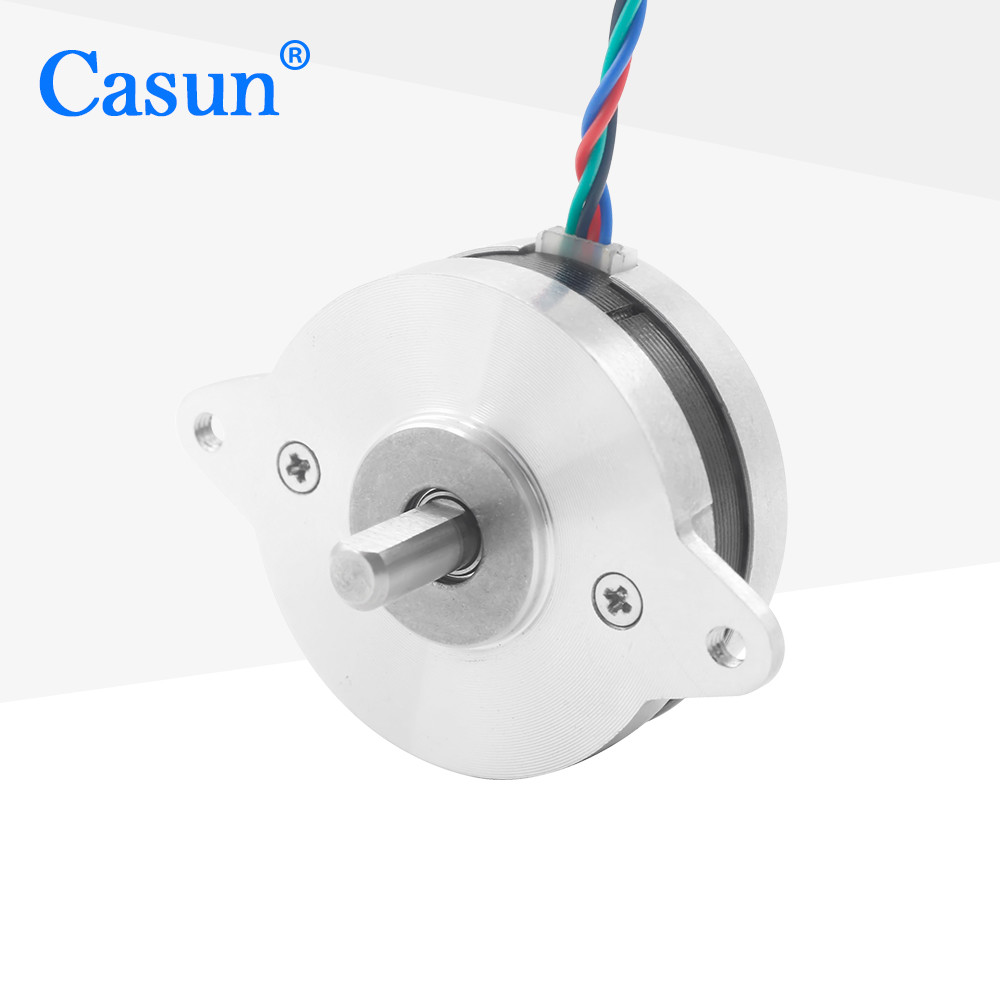

Appearance

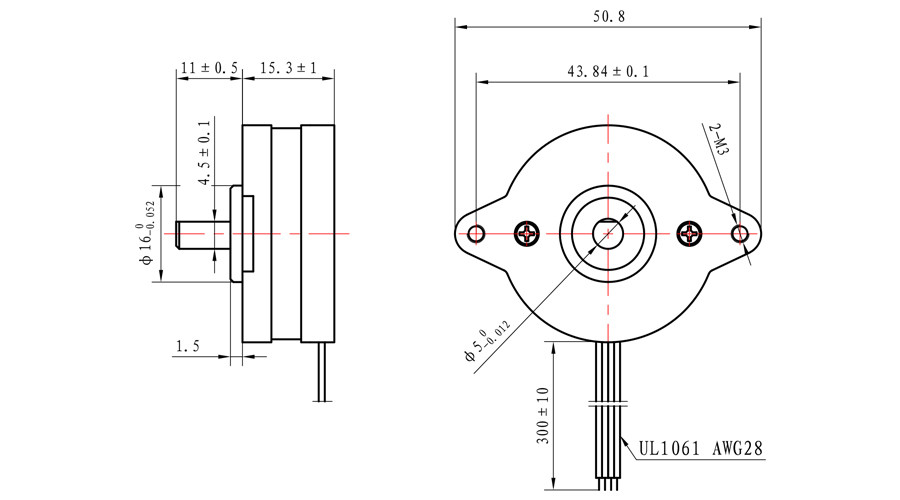

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
