0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment

Name: 04A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment
Brand: Casun
Price: 18 USD

Buy cheap 0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment product

Brand Name : Casun

Model Number : E42S-01-122440-300

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $18-$23

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 200mN.m

Current : 0.4A

Motor Length : 57.5mm

Shaft : 12/24/40mm Length

Voltage : 12v

tape : multilayer

color : black

Customized : The motor can be designed &manufactured with customized request.

Contact Now

nema17 hybrid stepper motor 42x42x57.5mm 200mN.m Multisport motor

The Nema17 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 42 x 42mm
Rated current: 0.4A
Holding torque: 2000mN.m
Weight: 0.3kg

Movement method:
1. The output shaft A can rotate (controlled by port 2);
2. The output shaft B can rotate (controlled by port 1).
Note: The above two motion modes are controlled by different ports.
Each motion mode can run independently at the same time without interfering with each other.

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	200mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor weight	0.3kg
Number of leads	4
Connection	Bipolar

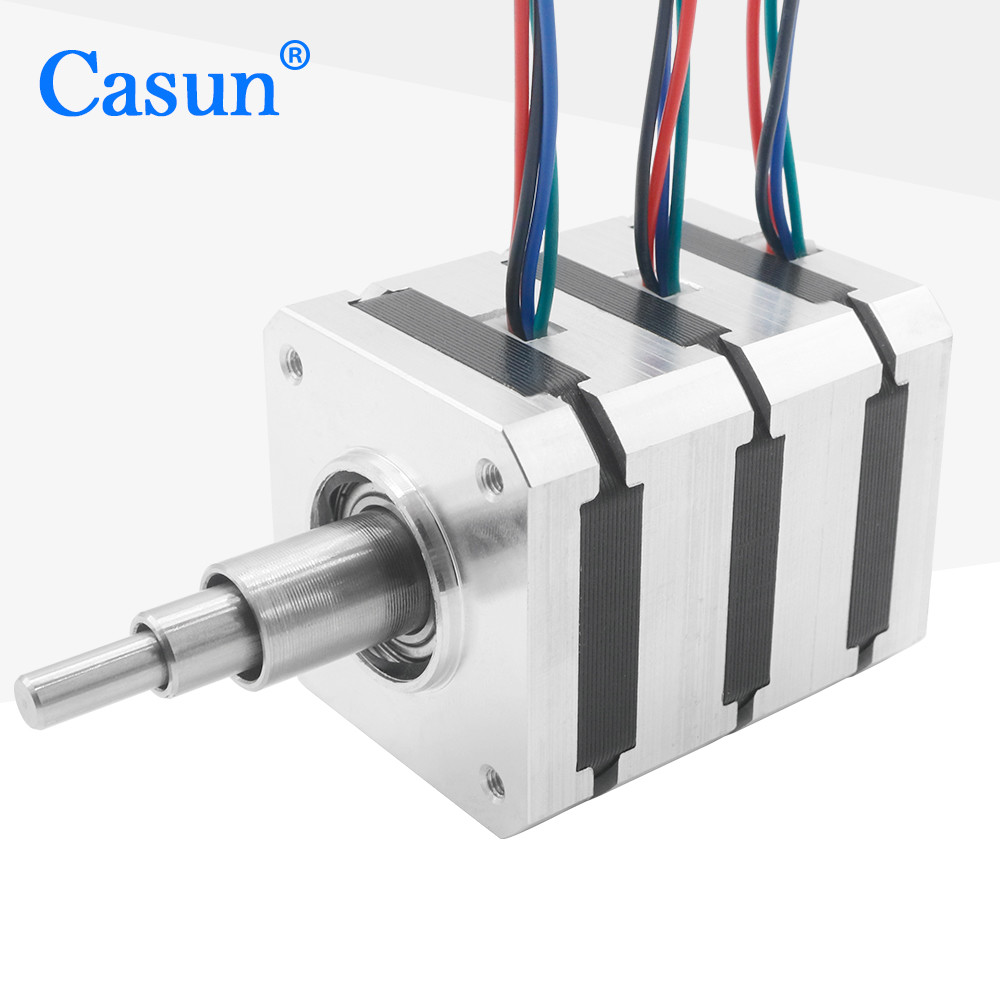

Appearance

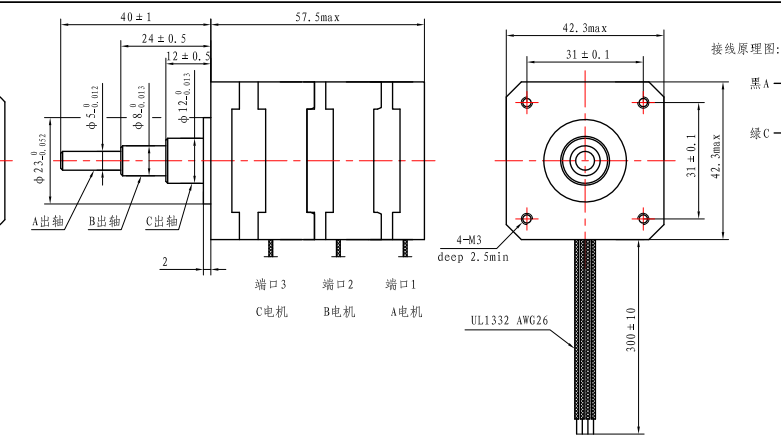

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
