1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation

Name: 18 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation
Brand: Casun
Price: 3.14 USD

Buy cheap 1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation product

Brand Name : Casun

Model Number : 57SHD4801-20H

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 1.75N.m

Current : 0.8A

Motor Length : 76mm

Shaft : Round Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation

The NEMA 23 stepper motor is highly efficient when operating under light loads and can provide good performance even at low currents.

Mechanical automation, aerospace, medical equipment, robotics technology

Features:

High torque and high precision
Specializing in delivering personalized services is our area of expertise
We are experts in drivetrain solutions
Dealers are actively sought after
With 12 years of operations in China, we have successfully served more than 800 customers

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	1.75 N.m
Resistance	12 ohm
Inductance	48 mH
Rotor Inertia	460 g-cm²
Motor weight1	1 kg
Number of leads	4
Connection	Bipolar

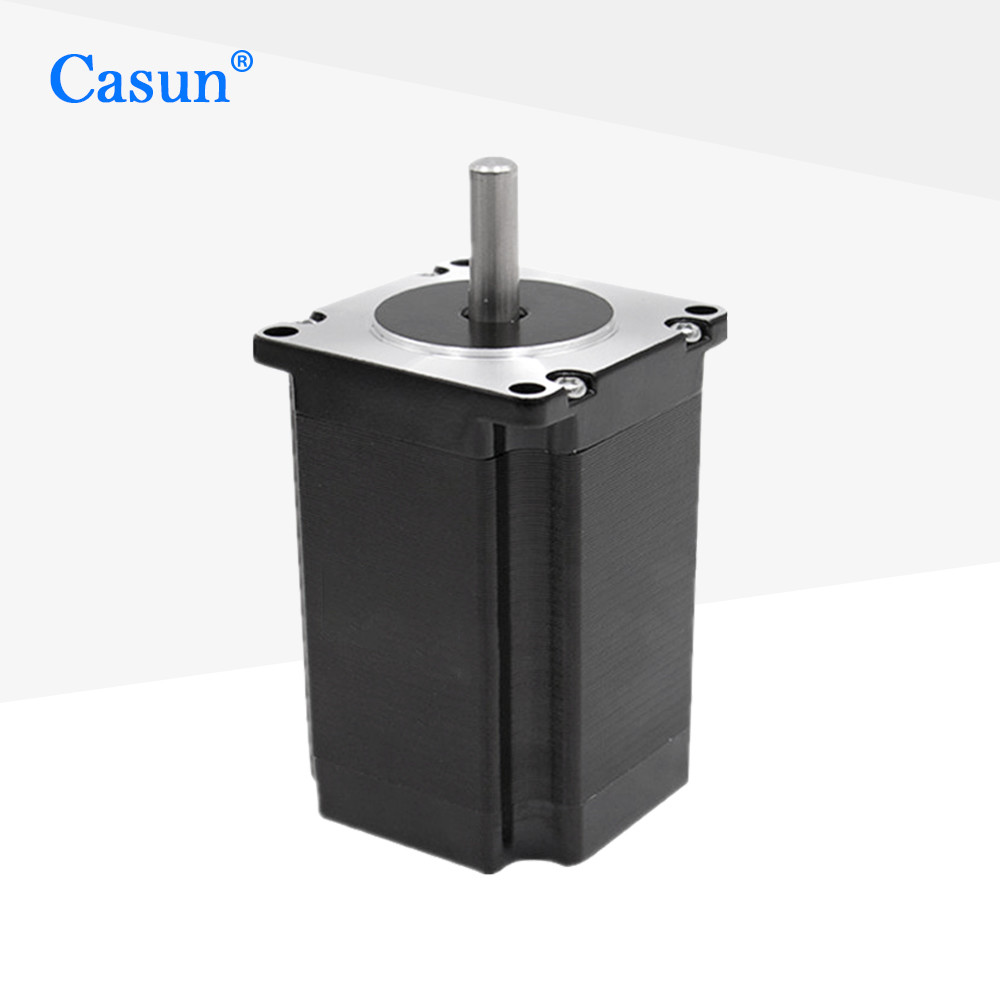

Appearance

1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation

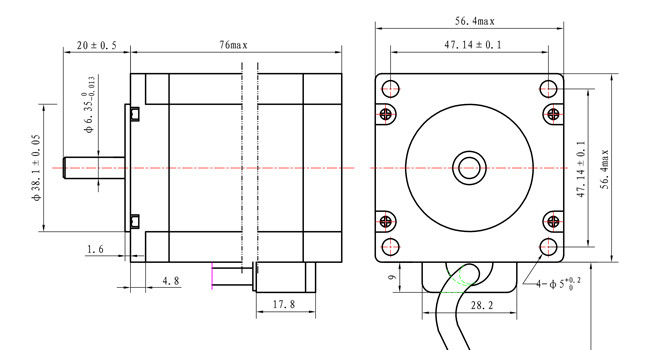

Dimensions

1.8 Deg 16Ncm 1A 57x57x76mm 4 Wires Stepper Motor Nema 23 For Mechanical Automation

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
