Widely used in environments that require moisture and water resistance, such as outdoor equipment, medical devices, industrial automation, etc.
It can prevent electrical short circuits and other safety hazards, improving the overall safety of the equipment.
Features:
-
Experts in drivetrain solutions
-
Tailored solutions are our forte
-
We are experts in drivetrain solutions
-
Dealers are actively sought after
-
Expect a response from our engineers within 48 hours with the best solution for your needs
Motor Specifications
Step Angel | 1.8 ° |
Fram Size | 57 mm |
Number of Phase | 2 Phase |
Rated Current | 3.0 A |
Holding Torque | 2.0 N.m |
Resistance | 0.95 ohm |
Inductance | 3.6 mH |
Rotor Inertia | 460 g-cm² |
Motor weight1 | 1 kg |
Number of leads | 4 |
Connection | Bipolar |

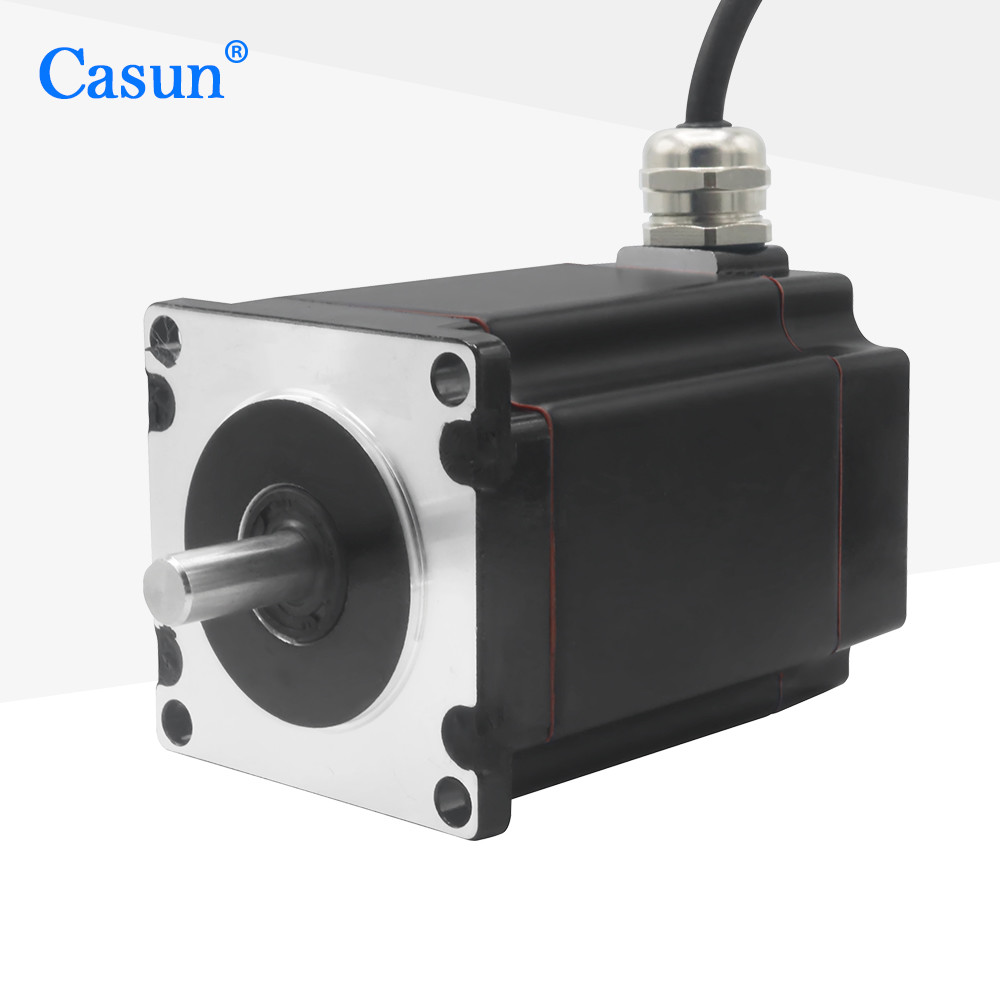

Appearance

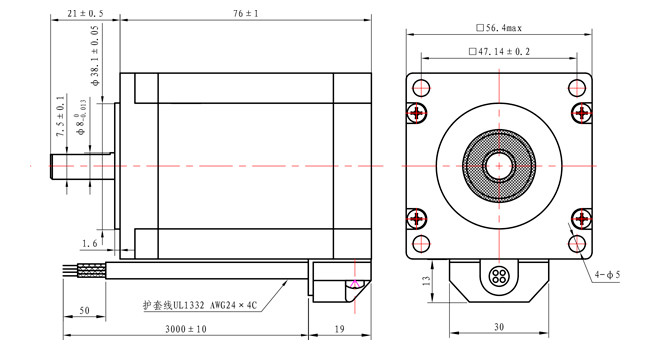

Dimensions
Operating Specifications
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Torque Curves
Submodels
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
| 57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D Shaft-21mm | 1.0A |
| 57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D Shaft-21mm | 3.0A |
| 57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D Shaft-21mm | 3.0A |
| 57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D Shaft-21mm | 3.0A |
| 57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D Shaft-20mm | 3.0A |
Download
If our standard motor cannot meet your needs,
we can customize the motor according to your needs
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Options:
Encoder | Brake | Gearbox | Shaft |
 |  |  |  |
Please click the "Get a quote" button below to tell us your requirements.
|
|
Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A for outdoor equipment Images
|
