1.8 Degree 2 Phase Nema 17 Tr88 Linear Stepper Motor 4242*48mm 0.5N.m for CNC

Name: 18 Degree 2 Phase Nema 17 Tr88 Linear Stepper Motor 424248mm 05Nm for CNC
Brand: Casun
Price: 13.5 USD

Buy cheap 1.8 Degree 2 Phase Nema 17 Tr8*8 Linear Stepper Motor 42*42*48mm 0.5N.m for CNC product

Brand Name : Casun

Model Number : 17LS19-1684E-200G

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $13.5-$14

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29xc14m

Color : black

current : 1.68Amp

Holding torque : 500mN.m

Customized : The motor can be designed &manufactured with customized request.

Screw lead : Tr8X8

Contact Now

The external drive screw structure can effectively reduce the noise and vibration during motor operation, improving the comfort of use.

The precision of the externally driven screw stepper motor is high, which can achieve high position control accuracy and speed control accuracy.

Features:

Ten-year warranty for confident purchases
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Our engineers will reach out within 48 hours to offer the optimal solution

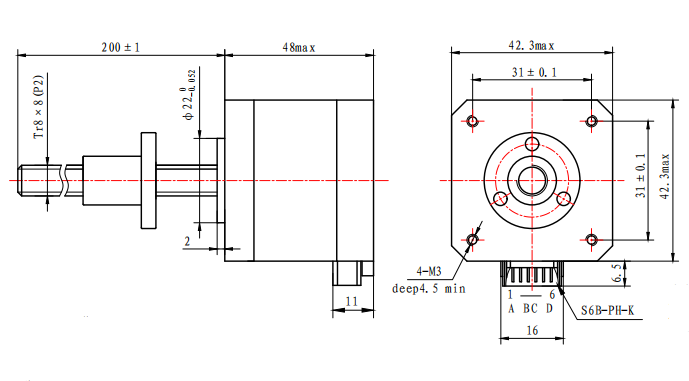

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68Amp
Holding Torque	500 mN.m
Resistance	1.65 ohm
Inductance	2.8 mH
Rotor Inertia	72g-cm²
Motor weight	0.38kg
Lead Screw	Tr8X8
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 34 mm 40 mm 48 mm 60 mm	5	2	20-1000 mm
		8
	6.35	1.27
		3.175
		6.35
	6.5	3
		6.35
	8	1
		2
		4
		8
		12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

1.8 Degree 2 Phase Nema 17 Tr8*8 Linear Stepper Motor 42*42*48mm 0.5N.m for CNC
