Casun Nema 11 High Tough and Precision 80mN.m 0.67A Stepper Motor for Medical Machine

Name: Casun Nema 11 High Tough and Precision 80mNm 067A Stepper Motor for Medical Machine
Brand: Casun
Price: 8.88 USD

Buy cheap Casun Nema 11 High Tough and Precision 80mN.m 0.67A Stepper Motor for Medical Machine product

Brand Name : Casun

Model Number : 28SHD4207-20

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1PC

Price : $8.88~$9.53

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Phase : 2

Insulation Class : Class B

Phase Resistance : 5.8ohms

Current : 0.67A

Voltage : 3.89V

Body Length : 33 mm

Holding Torque : 80 mN.m

Weight : 0.12 kg

Shaft Length : 20 mm

Contact Now

Casun Nema 11 High Tough and Precision 80 mN.m 0.67 A Stepper Motor for Medical Machine.

The Casun Nema 11 High-Toughness Precision Stepper Motor delivers exceptional performance with 80 mN.m torque and 0.67 A current, making it ideal for medical machinery and other high-precision applications. Engineered for durability, accuracy, and smooth operation, this compact Nema 11 stepper motor ensures reliable motion control in demanding environments. Its high-toughness design enhances longevity, while the precise torque output guarantees consistent performance for sensitive medical equipment. Perfect for surgical devices, lab automation, and diagnostic tools requiring compact size, high precision, and robust construction.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

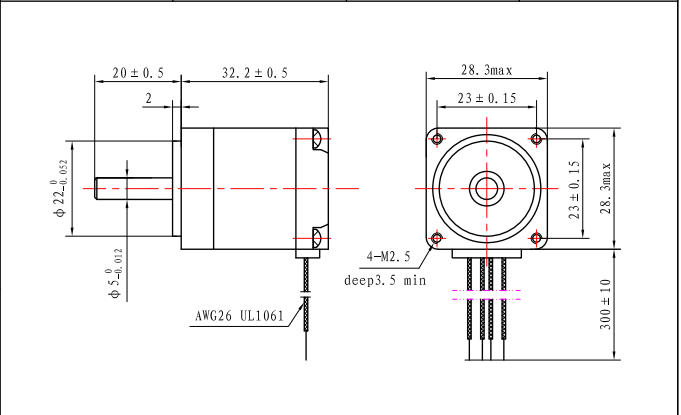

Dimensions

Casun Nema 11 High Tough and Precision 80mN.m 0.67A Stepper Motor for Medical Machine

Motor Specifications

Step Angel	1.8°
Frame Size	32 mm
Number of Phase	2 Phase
Rated Current	0.67 Amp
Holding Torque	80 mN.m
Resistance	5.8 ohm
Inductance	4.1 mH
Rotor Inertia	9 g.cm²
Motor weight	0.12 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
28SHD4001	30 mN.m	1.8°	25 mm	Round Shaft-15mm	0.4 A
28SHD4202	60 mN.m	1.8°	32 mm	Round Shaft-15mm	0.67 A
28SHD4303	80 mN.m	1.8°	40.5 mm	Round Shaft-15mm	0.67 A
28SHD4401	95 mN.m	1.8°	44.5 mm	Round Shaft-15mm	0.67 A
28SHD4501	120 mN.m	1.8°	51.5 mm	Round Shaft-15mm	0.67 A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
