Casun Nema 34 Stepper Motor 4 Amp 13 N.M High Tough Hybrid Stepping Motor For Cnc

Name: Casun Nema 34 Stepper Motor 4 Amp 13 NM High Tough Hybrid Stepping Motor For Cnc
Brand: Casun
Price: 42.32 USD

Buy cheap Casun Nema 34 Stepper Motor 4 Amp 13 N.M High Tough Hybrid Stepping Motor For Cnc product

Brand Name : Casun

Model Number : F86SHD4501-32H

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1PC

Price : $42.32$42.92

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Shaft Length : 32mm

Current : 4.0A

Body : 150mm

Frame Size : NEMA 34

Voltage : 7.2V

Step Angel : 1.8°

Holding Torque : 13N.m

Contact Now

Casun Nema 34 Stepper Motor 4 Amp 13 N.m Hybrid Stepping Motor for CNC.

The Casun Nema 34 Stepper Motor delivers high torque (13 N.m) and reliable performance with a 4 Amp current rating. This hybrid stepping motor is ideal for CNC applications, ensuring precision, durability, and smooth operation for demanding industrial and automation tasks.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

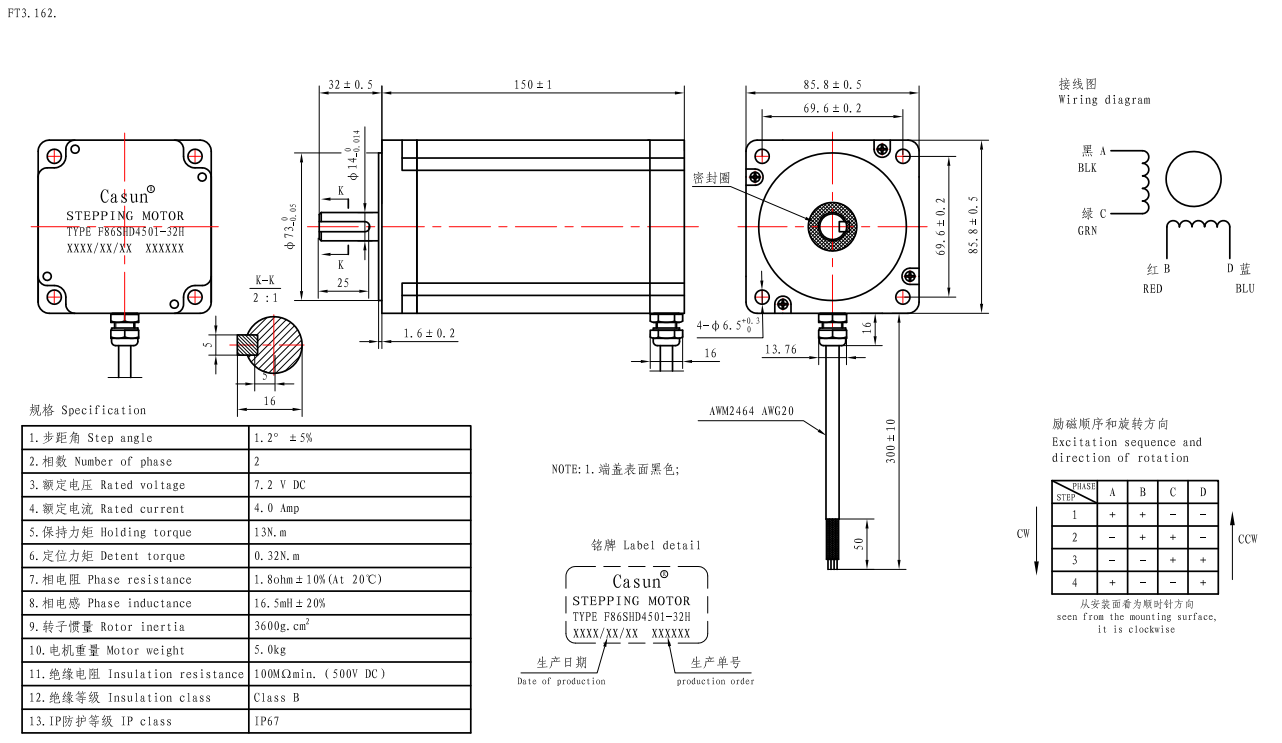

Dimensions

Casun Nema 34 Stepper Motor 4 Amp 13 N.M High Tough Hybrid Stepping Motor For Cnc

Motor Specifications

Step Angel	1.8 °
Frame Size	150 mm
Number of Phase	2 Phase
Rated Current	4.0 Amp
Holding Torque	13 N.m
Resistance	1.8 ohm
Inductance	16.5 mH
Rotor Inertia	3600 g-cm²
Motor weight	5 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
86SHD4003	4 N.m	1.8°	69 mm	KEY Shaft-32mm	4.0A
86SHD4101	4.5 N.m	1.8°	76 mm	KEY Shaft-20mm	4.0A
86SHD4201	5.6 N.m	1.8°	98 mm	KEY Shaft-20mm	4.0A
86SHD4315	6.8 N.m	1.8°	112 mm	KEY Shaft-24mm	5.0A
86SHD4505	12 N.m	1.8°	150 mm	KEY Shaft-24mm	5.5A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 34 Stepper Motor 4 Amp 13 N.M High Tough Hybrid Stepping Motor For Cnc

Please click the "Get a quote" button below to tell us your requirements.
