Nema 14 High Precision 230mN.m 0.75A Hybrid Stepper Motor For Medical Machine

Name: Nema 14 High Precision 230mNm 075A Hybrid Stepper Motor For Medical Machine
Brand: Casun
Price: 3.5 USD

Buy cheap Nema 14 High Precision 230mN.m 0.75A Hybrid Stepper Motor For Medical Machine product

Brand Name : Casun

Model Number : P35SHD4119-13P

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1PC

Price : $3.5~$4.15

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Phase : 2

Insulation Class : Class B

Phase Resistance : 6.4ohms

Current : 0.75A

Voltage : 4.8V

Body Length : 34 mm

Holding Torque : 230 mN.m

Weight : 0.2 kg

Shaft Length : 13 mm

Contact Now

Nema 14 High Precision 230mN.m 0.75A Hybrid Stepper Motor

The Casun Nema 14 High Precision Stepper Motor delivers 230 mN.m torque at 0.75A and is designed for medical machines requiring accurate motion control. Its hybrid stepper technology ensures smooth operation, high reliability, and precise positioning, making it ideal for sensitive medical applications. Compact, efficient, and built for performance.

Key Features

Bipolar or unipolar versions available

Hybrid stepper construction

Available in single or double shaft versions

CE and RoHS approved

Customizations on request

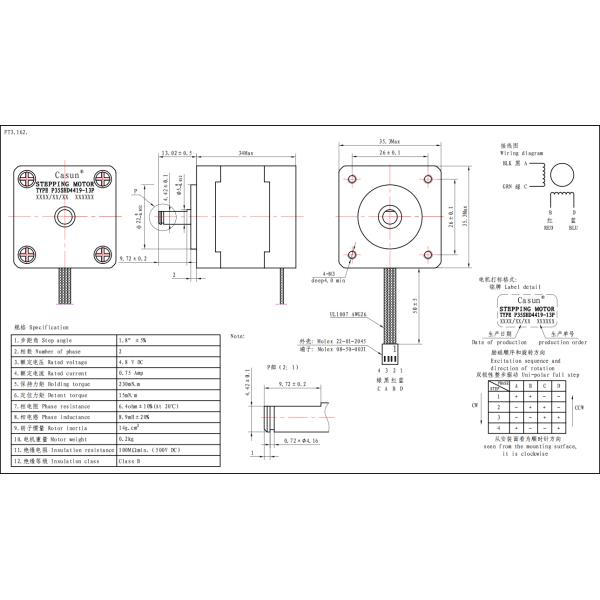

Dimensions

Nema 14 High Precision 230mN.m 0.75A Hybrid Stepper Motor For Medical Machine

Motor Specifications

Step Angle	1.8°
Frame Size	34 mm
Number of Phase	2 Phase
Rated Current	0.75 Amp
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9 mH
Rotor Inertia	14 g.cm²
Motor Weight	0.2 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder

Voltage	5V
Output	A + A - B + B - Z + Z -

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4 A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4 A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75 A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-24mm	0.5 A

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
