550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm

Name: 550mNM 2 Phase 30V DC Nema 17 Hybrid Stepper Motor 42x42mm
Brand: Casun
Price: 3.14 USD

Buy cheap 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm product

Brand Name : Casun

Model Number : 42SHD0437-24BH

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 550mN.m

Current : 1.68A

Motor Length : 48mm

Shaft : Milling Flat Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 42mm Hybrid Stepper Motor Series comes in a range of sizes and provides strong holding torque.

Use in conjunction with a microstepping driver to lower vibration and increase step resolution.

Select a base model or ask for a configuration that is unique to you.

Features:

Versions in unipolar or bipolar are offered
For electronic industrial equipment and high-tech industry equipment
Available in variations with a single or double shaft
"Multiple international certifications" are required
Expert manufacturing research and development

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	550 mN.m
Resistance	1.8 ohm
Inductance	4.5 mH
Rotor Inertia	72 g-cm²
Motor weight	0.38 kg
Number of leads	4
Connection	Bipolar

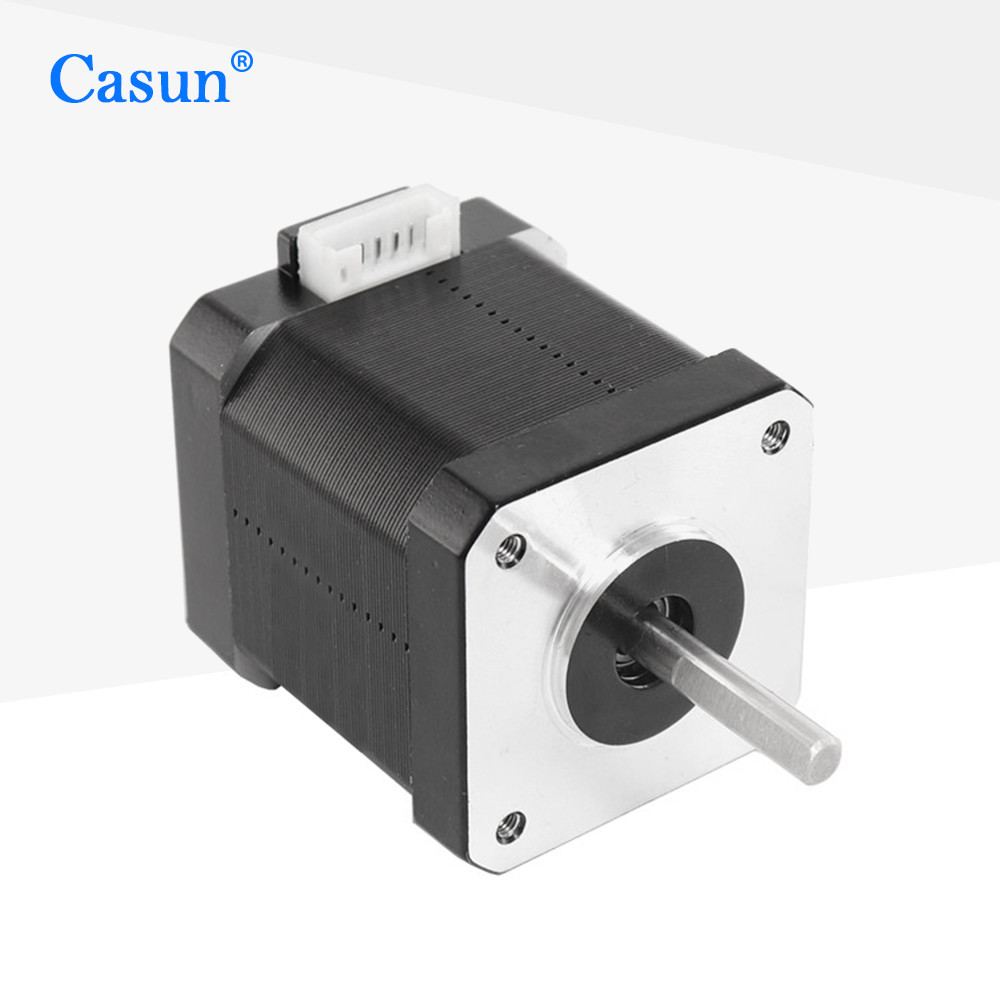

Appearance

550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm

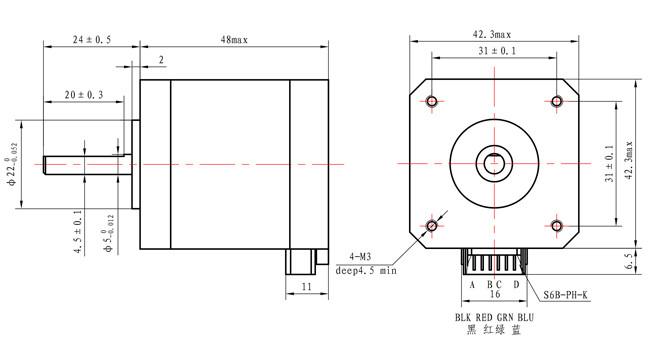

Dimensions

550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
