Multilayer Nema 16 Stepper Motor 39*40mm 12V For Medical Device CE Certifications

Name: Multilayer Nema 16 Stepper Motor 3940mm 12V For Medical Device CE Certifications
Brand: CASUN
Price: 1 USD

Buy cheap Multilayer Nema 16 Stepper Motor 39*40mm 12V For Medical Device CE Certifications product

Brand Name : CASUN

Model Number : E39C-33

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1pcs-10pcs

Price : US $11.00 - 14.00/ Piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100000+PCS+Month

Delivery Time : 7-15 workdays

Packaging Details : Carton:38x29xc14m

Step angle : 1.8degree

Phase : 2

Rated voltage : 12V

Rate current : 0.48A

Holding torque : 200mN.m

Brand : CASUN

Type : Multilayer stepper motor

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Multilayer Nema 16 Stepper Motor 39×40mm 12V For Medical Device CE Certifications

Product Overview

CASUN R&D Multilayer Nema 16 Stepper Motor 39×40mm designed specifically for medical devices with CE certifications. This 0.48A bipolar stepper motor features two-phase operation at twelve volts, delivering reliable performance for medical equipment applications.

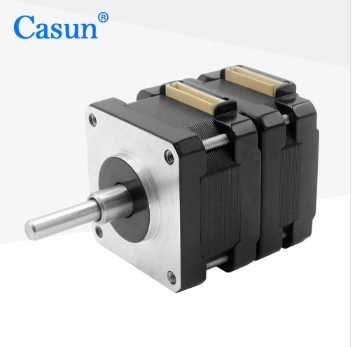

Product Appearance

Multilayer Nema 16 Stepper Motor 39*40mm 12V For Medical Device CE Certifications

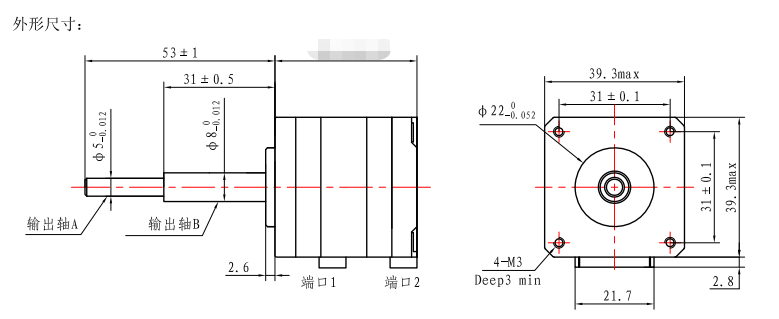

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	40 mm
Number of Phase	2 Phase
Rated Current	0.48 A
Holding Torque	200 mN.m
Resistance	22 ohm
Inductance	25 mH
Number of Leads	4
Connection	Bipolar

Available Options

Encoder

Brake

Gearbox

Connector

Customization Services

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to:

Special shafts and shaft modifications
Custom winding parameters
Specific installation dimensions
Lead wires with special requirements
Custom connectors and terminations

Multilayer Nema 16 Stepper Motor

12V Nema 16 Stepper Motor
